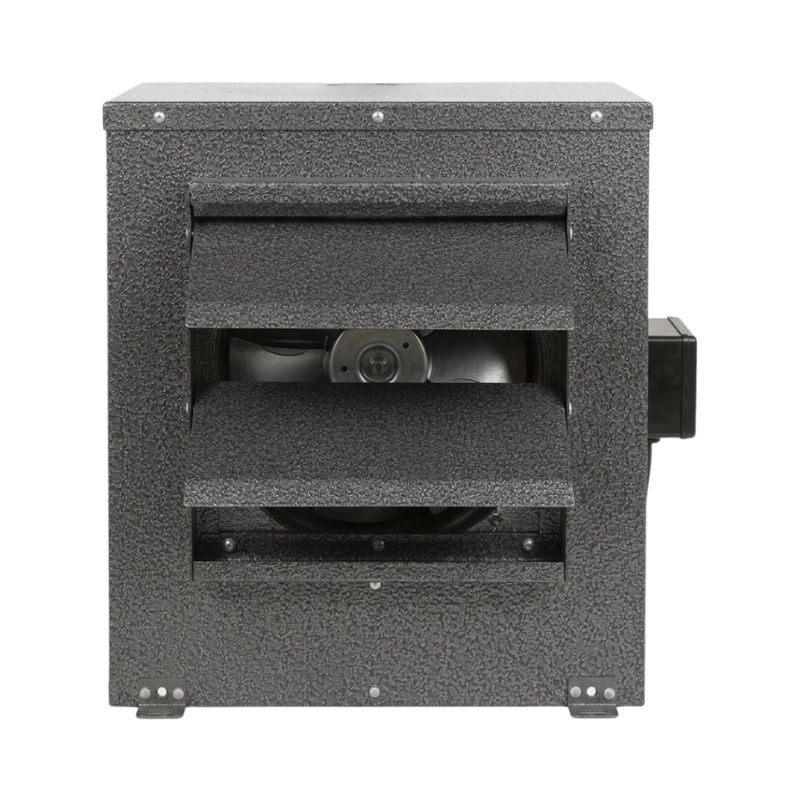

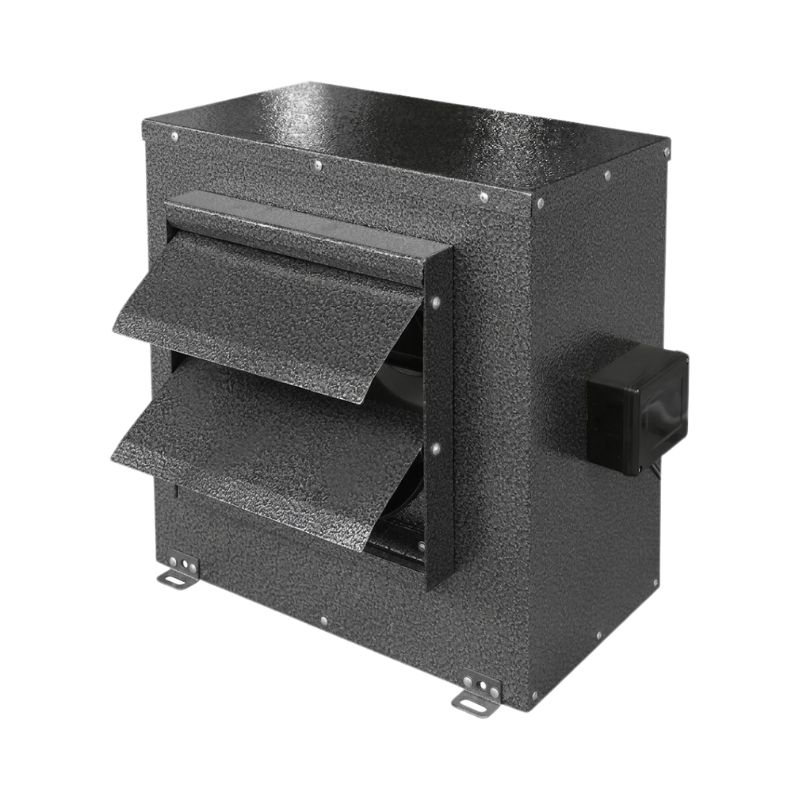

GREENBREEZE GBC ROOF TOP CABINET FANS
The GREENBREEZE Roof Top Cabinet Fan is a roof-mounted ventilation solution designed for applications where efficient air extraction is required. Its cabinet-style construction makes it suitable for installation on rooftops and connection to ventilation ductwork, depending on the system design and application.
Roof-mounted ventilation can help remove accumulated heat, fumes, stale air and unwanted air from commercial and industrial spaces while keeping the ventilation equipment positioned outside the occupied area.
GREENBREEZE ventilation products are suitable for a range of HVAC and building ventilation requirements, with model selection depending on airflow, pressure, installation conditions and project requirements.
MORE INFO download catalogueKEY FEATURES OF GREENBREEZE GBC ROOF TOP CABINET FANS
High efficiency Centrifugal Impeller
IP55

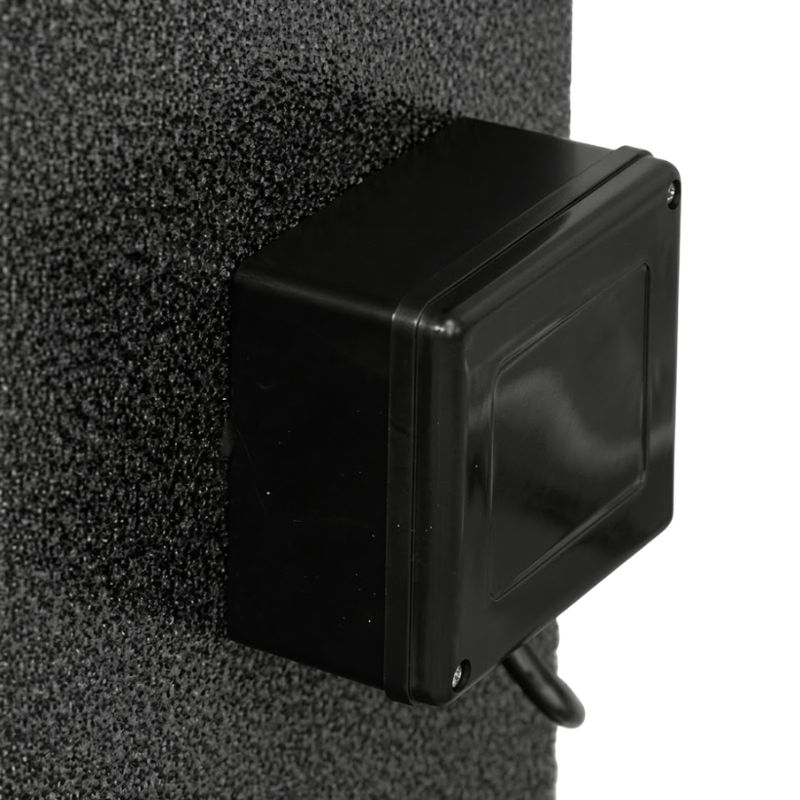

External Connection Box
HEAVY-GAUGE STEEL CABINET WITH WEATHER-RESISTANT FINISH
The GBC cabinet is manufactured using heavy-gauge sheet steel and finished with a polyester powder coating. This provides a robust external enclosure designed to withstand demanding installation environments and regular use.
The durable cabinet construction makes the fan suitable for rooftop and other outdoor ventilation installations where equipment may be exposed to changing environmental conditions.
LOW-NOISE OPERATION WITH 10MM MELAMINE FOAM
Noise control is an important consideration for commercial and building ventilation systems.
GREENBREEZE GBC fans feature an internal 10mm melamine foam lining designed to help reduce operating noise while also providing thermal insulation within the cabinet.
This makes the GBC range suitable for applications where dependable ventilation performance needs to be combined with controlled operating noise.

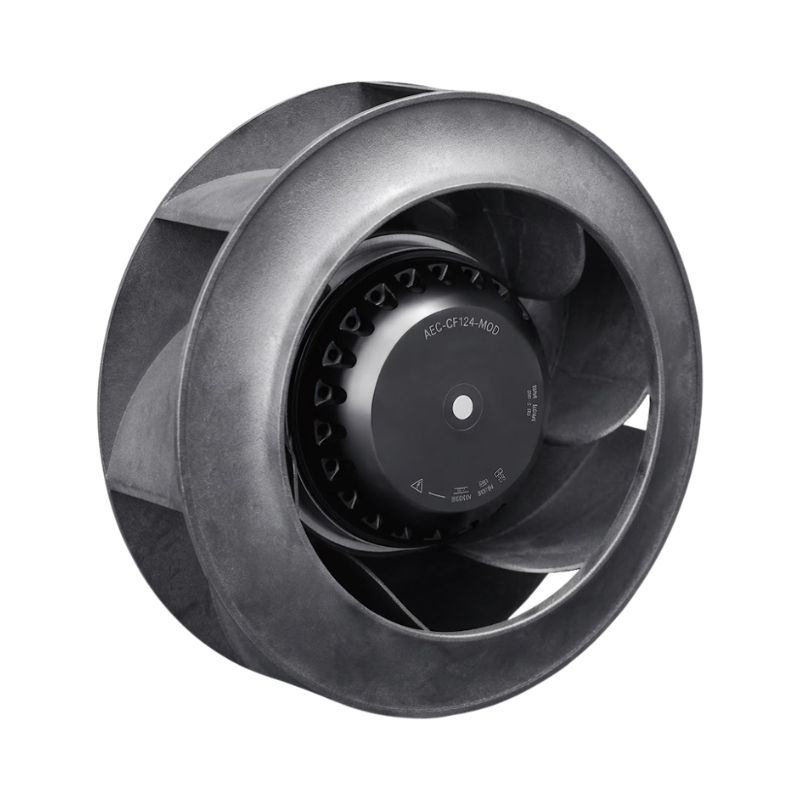

BACKWARD-CURVED CENTRIFUGAL IMPELLER
The GBC series uses backwards-curved centrifugal impellers designed to deliver efficient airflow.
The centrifugal configuration is suitable for ventilation systems where the fan needs to overcome resistance created by ductwork and other system components.
The fan also incorporates optimised direction flaps and factory-installed backdraft dampers to help reduce turbulence and prevent unwanted reverse airflow.
ENERGY-EFFICIENT MOTOR SYSTEM
GREENBREEZE GBC Roof Top Cabinet Fans are equipped with energy-efficient ball-bearing motors with Class F insulation.
This motor configuration is designed for dependable operation and continuous-duty applications, subject to the applicable model and installation conditions.
IP55 MOTOR PROTECTION
The GBC fans are equipped with an IP55-rated motor, providing protection suitable for demanding ventilation environments.
The IP55 motor protection, combined with the robust cabinet construction, makes the GBC series suitable for indoor and outdoor applications where protection against dust and water exposure is required within the specified operating conditions.
WIDE OPERATING TEMPERATURE RANGE
GREENBREEZE GBC fans are designed for continuous operation within a temperature range of -25°C to +55°C, according to the specified product design.
This wide operating range makes the fan suitable for a variety of climatic and installation environments.
COMPACT AND SPACE-SAVING CABINET DESIGN
Rooftop and mechanical ventilation installations can have limited available space.
The GBC cabinet design provides a compact footprint while incorporating the fan, motor and ventilation components into a practical cabinet configuration.
This allows easier integration into suitable rooftop and ducted ventilation systems.
RECYCLED-MATERIAL IMPELLERS AND ENERGY SAVING
The impellers are manufactured using recycled materials, supporting a more sustainable approach to product design.
Combined with the energy-efficient motor system and optimised centrifugal impeller design, the GBC range is developed with attention to energy consumption and long-term operating efficiency.
GREENBREEZE GBC FAN TECHNICAL HIGHLIGHTS
The GREENBREEZE GBC Rooftop Cabinet Fan range provides several features designed for reliable ventilation performance:
Note: Exact airflow, pressure, motor power, speed, dimensions and electrical specifications depend on the selected GBC model. Contact Cannelle Holdings for the applicable model datasheet and technical specifications.

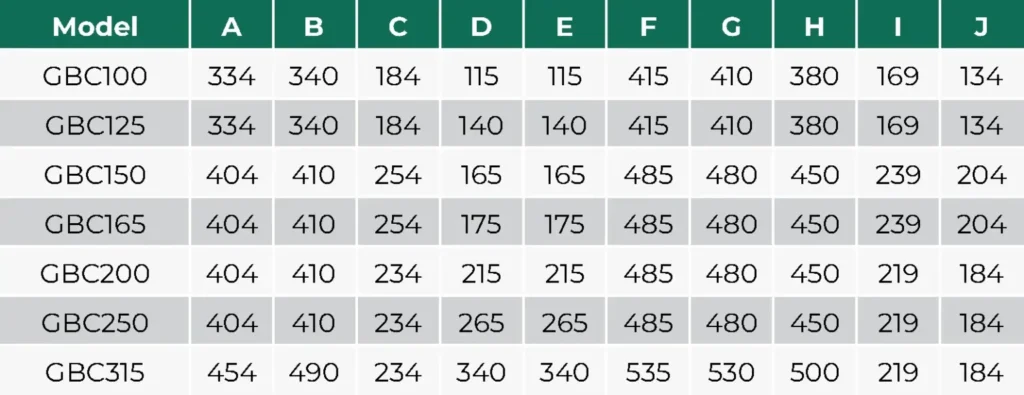

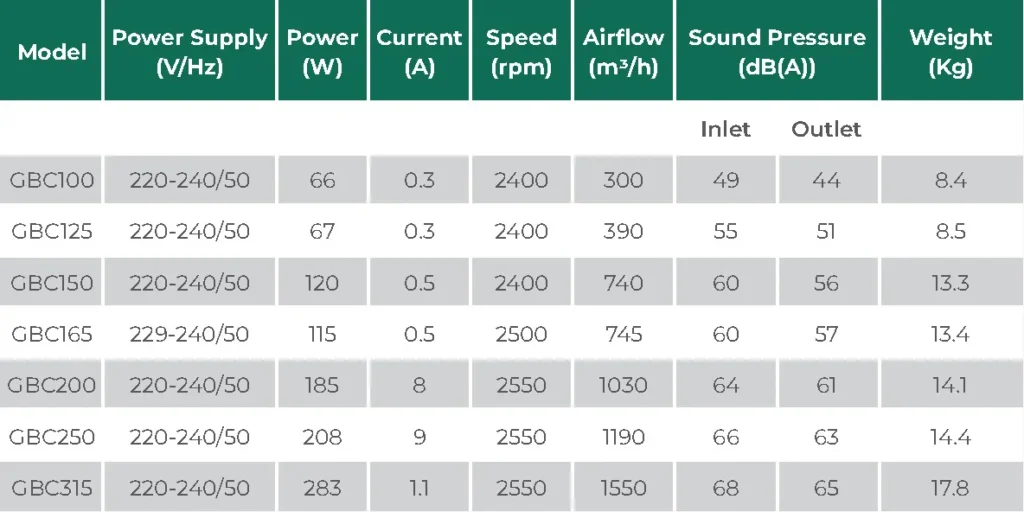

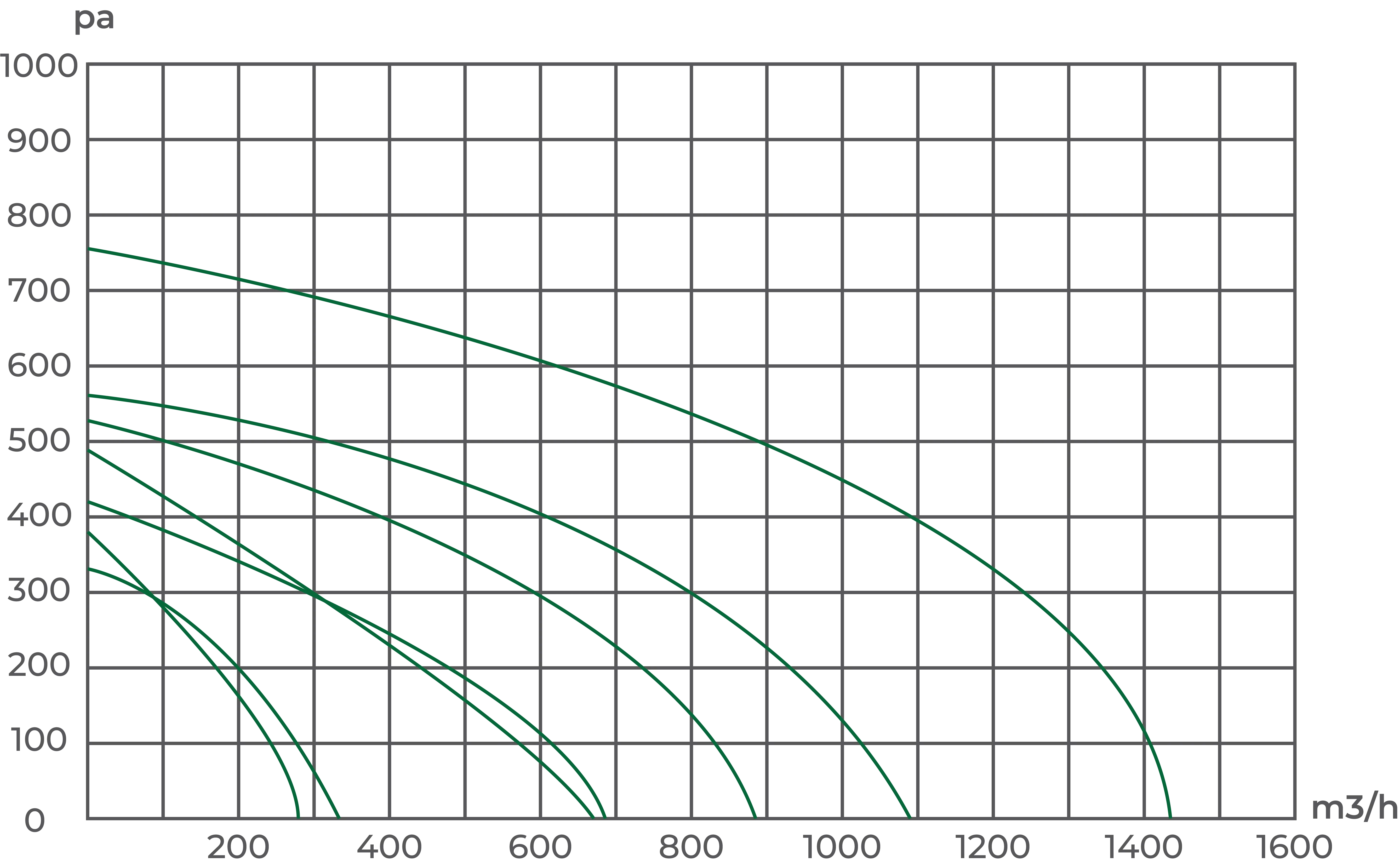

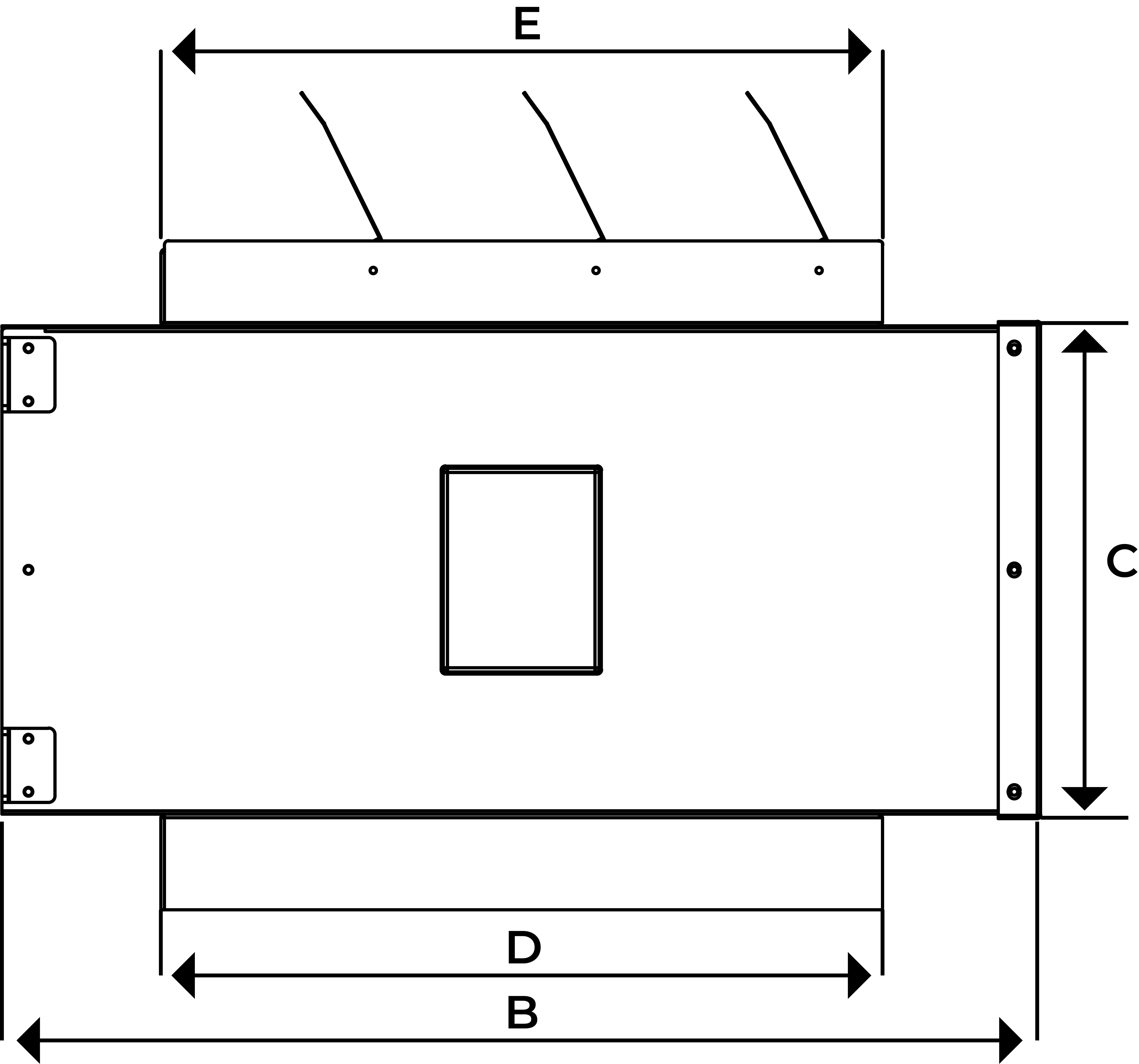

PRODUCT PARAMETERS
GREENBREEZE VENTILATION FANS FOR HVAC PROJECTS
GREENBREEZE is part of Cannelle Holdings’ ventilation product range for HVAC and building ventilation applications.
Our ventilation range can support different air extraction and air movement requirements, including products for commercial buildings, industrial facilities and other HVAC projects.
If you are looking for a GREENBREEZE rooftop fan, cabinet fan or ventilation fan in the UAE, contact Cannelle Holdings for product availability and technical information.
HOW TO SELECT THE RIGHT ROOFTOP CABINET FAN
Before selecting a rooftop cabinet fan, consider several technical factors.
AIRFLOW REQUIREMENT
Determine the required airflow for the area and application. The fan should provide the required airflow at the system’s operating pressure.
STATIC PRESSURE
Duct length, bends, filters, grilles, dampers and other components create resistance. Static pressure requirements should therefore be considered during fan selection.
INSTALLATION CONDITIONS
Consider the available rooftop space, mounting arrangement, access for maintenance and exposure to environmental conditions.
ELECTRICAL REQUIREMENTS
Confirm the required voltage, frequency, motor power and other electrical requirements for the selected model.
NOISE REQUIREMENTS
For commercial and occupied buildings, operating noise should be considered as part of the ventilation system design.
OPERATING TEMPERATURE
Ensure that the selected fan is suitable for the expected operating temperature range of the installation.
For assistance with product selection, contact Cannelle Holdings with your project requirements.
WHY BUY GREENBREEZE FANS FROM CANNELLE HOLDINGS?
Cannelle Holdings is an HVAC and building materials supplier in the UAE, supporting contractors, HVAC companies, MEP professionals, facility managers and commercial customers with a wide range of HVAC and building material products.
When sourcing GREENBREEZE GBC Roof Top Cabinet Fans from Cannelle Holdings, customers can benefit from:
HVAC PRODUCT KNOWLEDGE
Our team works with HVAC and building material products and can assist with product enquiries based on your application and project requirements.
UAE-WIDE SUPPLY
Cannelle Holdings serves customers across the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman and other locations, subject to delivery and stock arrangements.
TECHNICAL INFORMATION
We can provide available product specifications and technical documentation for the applicable GBC model to support project evaluation and product selection.
ONE HVAC SUPPLY PARTNER
In addition to ventilation fans, Cannelle Holdings supplies a wide range of HVAC and building materials, allowing contractors and commercial customers to source multiple products through one supplier.
REQUEST A GREENBREEZE GBC ROOF TOP CABINET FAN QUOTE
Looking for a GREENBREEZE rooftop cabinet fan supplier in the UAE?
Send Cannelle Holdings your required model, quantity or project specifications. Our team can assist with product information, technical documentation, availability and quotation.
REQUEST A QUOTATION CALL NOWGET IN TOUCH WITH US
Adress
Cannelle Holdings FZE
P.o. Box – 261660 FZS2AD09,
Jebel Ali Free Zone, Dubai, U.A.E
Opening Hours
Mon to Sat : 8am – 8pm
phone
FAQ’S
1. What is a Roof Top Cabinet Fan?
A rooftop cabinet fan is a mechanical ventilation fan designed for rooftop installation and air extraction. It can be used as part of commercial, industrial and building ventilation systems.
2. Where can a Roof Top Cabinet Fan be used?
Rooftop cabinet fans can be used in warehouses, factories, workshops, commercial buildings, kitchens, storage areas and other applications requiring mechanical air extraction, depending on the fan specification and system design.
3. What is the difference between a rooftop cabinet fan and a standard exhaust fan?
A rooftop cabinet fan is housed in a weatherproof cabinet for outdoor rooftop mounting and can connect to ductwork, while a standard exhaust fan is typically wall- or window-mounted for direct room extraction without a weatherproof enclosure.
4. Can the fan be used for industrial ventilation?
Rooftop cabinet fans can be considered for industrial ventilation applications where the fan’s airflow and pressure performance are suitable for the system. The correct model should be selected based on the project requirements.
5. How do I select the right rooftop cabinet fan?
Fan selection depends on factors such as required airflow, static pressure, duct resistance, installation location, electrical requirements and application. Provide your specifications to our team so the suitable available model can be reviewed.
